【意匠に係る物品】トラック荷箱のリアドア破損防止具
【創作者】
【氏名】大澤 滋彦
【住所又は居所】熊本県八代市麦島東町4−1
【意匠権者】
【識別番号】524273580
【氏名又は名称】大澤 滋彦
【住所又は居所】熊本県八代市麦島東町4−1
【代理人】
【識別番号】100149548
【弁理士】
【氏名又は名称】松沼 泰史
【代理人】
【識別番号】100122312
【弁理士】
【氏名又は名称】堀内 正優
【代理人】
【識別番号】100137017
【弁理士】
【氏名又は名称】眞島 竜一郎
【意匠に係る物品の説明】
本物品は、トラック荷箱のリアドア破損防止具である。本物品は、リアドアが有する二本のロックパイプに架け渡される本体部と、この本体部に直交するコラム部とからなる。使用状態を示す参考図のように、本物品をリアドアに装着すると、リアドアの前面側にコラム部が立設する。リアドアを全開(約270°回転)したときに、コラム部の先端のゴムクッションがトラック荷箱の側面に当接して、リアドアの損傷を防止することができる。
 名称「トラック荷箱のリアドア破損防止具」

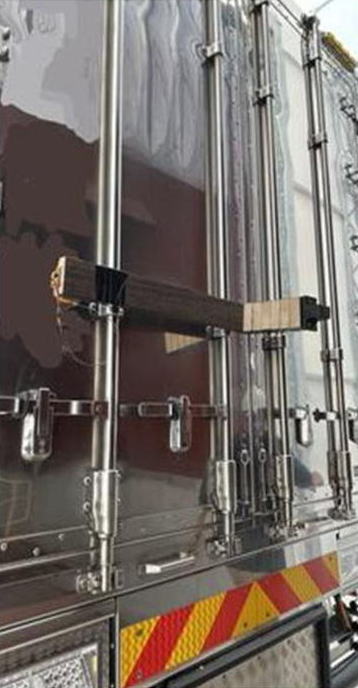

試作写真>
 狭い間口での荷下ろしに有効です。
特にスライドデッキ車で木材チップ等を下ろす際に重宝します。
取り付けは、後部扉をロックするポールにフックで簡単装着、落下防止ワイヤー(付属)
を架け、開口部手前でロックだけを外し、扉を解放しないまま開口部へ侵入し荷下ろしを開始します。

☆メリット
@後部扉解放時の壁面等接触の際に扉および壁面の破損防止。
A最低でもトラックボディ幅の間口で荷下ろし可能であるため、荷受け側設備に無駄なスペースを設ける必要がない。
B荷受け側壁面に突起物があっても、突起物の高さに合わせてアームの高さを変えることで問題なく荷下ろし可能。
C落下防止ワイヤーを架けることで、異物混入が防止できる


Effective for unloading in narrow frontage.
It is especially useful when unloading wood chips and other materials from a sliding deck car.
Installation is as follows: easy installation with hooks on the pole that locks the rear door.
The door is then unlocked in front of the opening, and the driver enters the opening without releasing the door to start unloading.

Advantages
(1) Prevents damage to the door and wall when the rear door is opened and it comes in contact with the wall.
(2) No unnecessary space is required on the receiving side because unloading is possible within the width of the truck body at a minimum.
(3) Even if there are protrusions on the wall on the receiving side, unloading is possible without problems by changing the height of the arm to match the height of the protrusions.
(4) Foreign objects can be prevented from being mixed in by attaching fall prevention wires.

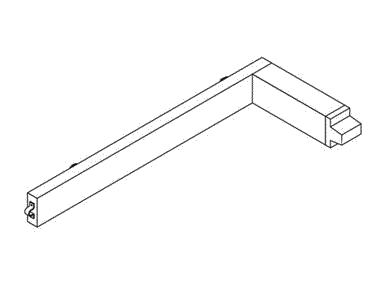

【斜視図】
斜視図

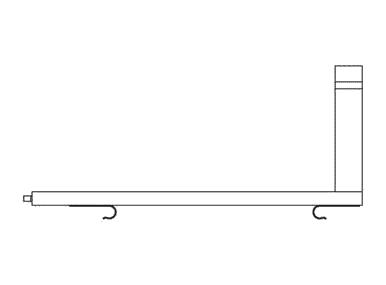

【正面図】
正面図
【背面図】
背面図

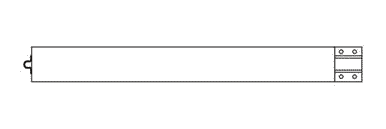

【平面図】
平面図

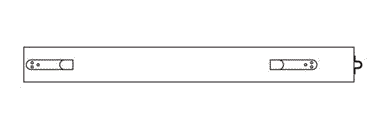

【底面図】
底面図

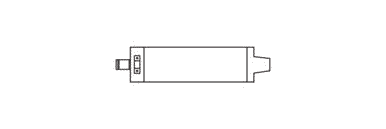

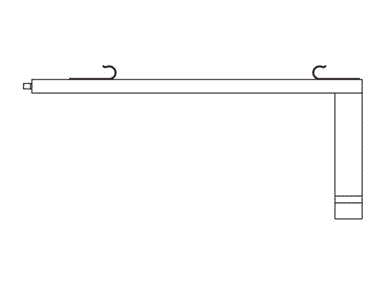

【右側面図】
右側面図

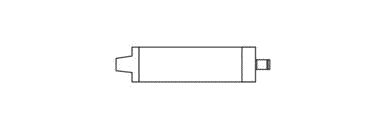

【左側面図】
左側面図

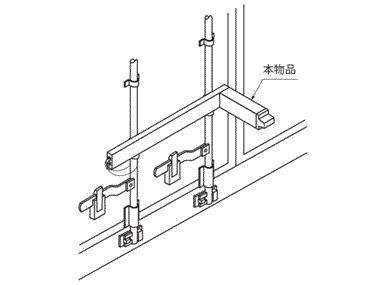

【使用状態を示す参考図】
使用状態を示す参考図
